CNC Glass Cutting Line

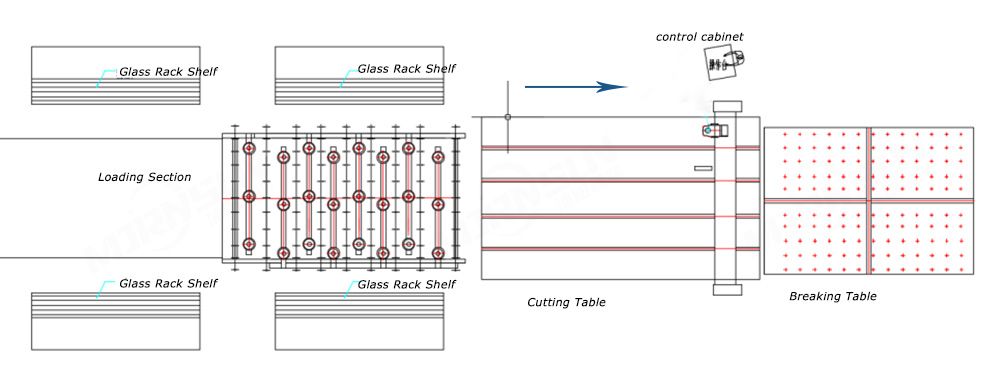

Our Full Automatic Glass Cutting Line effectively improves the efficiency and quality of glass processing through automated three-stage processes of loading, cutting and breaking. It is suitable for glass processing plants of all sizes and is widely used in construction, furniture, decoration, automobile and other industries. At the same time, the assembly line also has a user-friendly interface and operating system, making operation simple and convenient.
Max. Glass Size :
5100*3300MMMin. Glass Size :
/Glass Thickness :
3 ~ 19MMUsage :
Glass Cutting for Glass Processing PlantMachine Description
Our Full Automatic Glass Cutting Line is equipped with an automatic loading system that automatically loads raw glass sheets into the cutting area. This feature greatly improves production efficiency and reduces the need for manual operation. The three machines are controlled by one control center and can be operated by one person.
Machine Feature

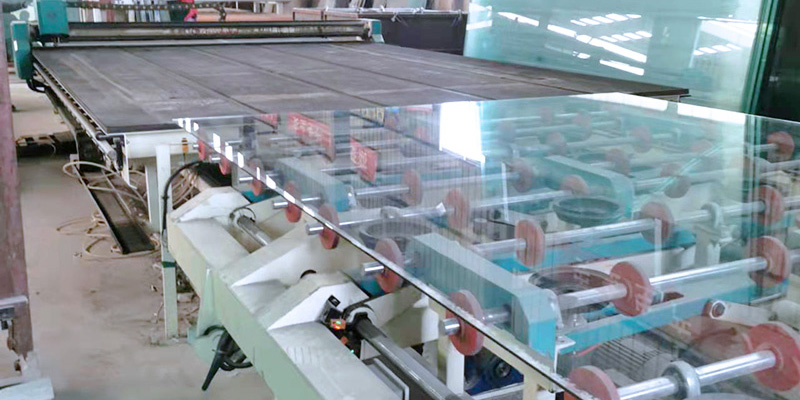

Automatic glass loading table
Mechanical flipping, fast operation and stable operation.
Equipped with double-channel flipping transmission chain protection to ensure the safety and reliability of the flipping process.
Glass photoelectric sensor, safer, more stable and reliable operation.
High Precision Annealed Steel
Structure & Beam are made of 8mm thickness steel, annealed.

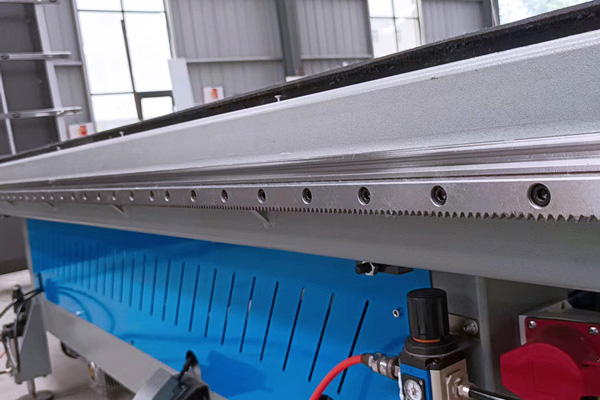

High precision Rail & Rack within 0.05mm.
Wide Cutting Range
various shapes can be cut, in both straight line or shaped lines.

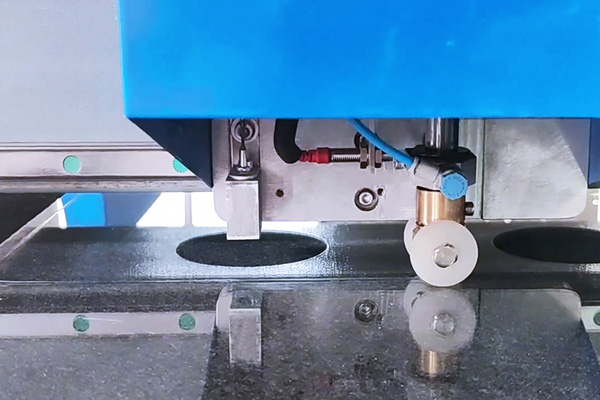

Famous glass cutting tool, high quality, durable and sharp.
seeking sensor can easy and precisely positioning glass.
| Model |
MSC-2621L |
MSC-4228L | MSC-5133L |
| Max. Glass Size | 2600*2000MM | 4200*2800MM | 5100*3300MM |
| Glass Thickness | 2 ~ 19mm | 2 ~ 25mm | 3 ~ 25mm |
| Cutting Speed | 0 ~ 200m/min | ||
| Loading Circle | 40 ~ 90 second adjustable | ||
| Loading Position | Single / Double Station | ||
| Breaking Rod | 1 + 1 | 1 + 2 | 1 + 2 |
| Compress Air | 1.2Mpa | ||
| Machine Size | 9600x2800x850mm | 14200x3750x850mm | 17500x4300x850mm |
| Labeling | Optional | ||
| Power Supply | 380V 50Hz customized | ||

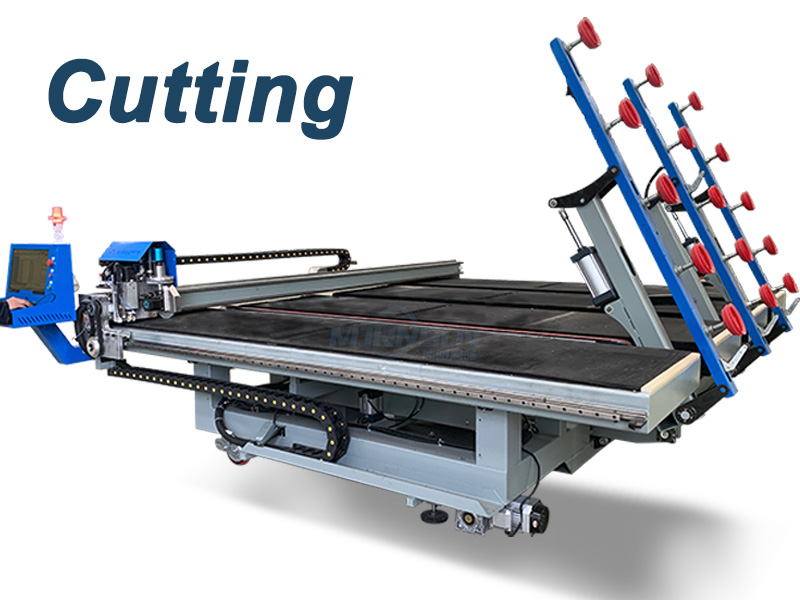

Our CNC Glass Cutting and Breaking Machine is an innovative solution that combines cutting and breaking capabilities in a single unit. This advanced machine revolutionizes the glass processing industry by streamlining the production process and delivering high-quality results. Iregular- shape Cutting: support Labeling: optional Film Removal: optional
Read More
The Fully Automatic CNC Laminated Glass Cutting Machine is a high-precision glass cutting equipment. It combines the characteristics of CNC technology and laminated glass. It can achieve fast and precise cutting of EVA glass and automatically break the pieces during the cutting process, which greatly improves the efficiency of EVA glass. Ease and efficiency of processing laminated glass.
Read More
Our Full Automatic Glass Cutting Line effectively improves the efficiency and quality of glass processing through automated three-stage processes of loading, cutting and breaking. It is suitable for glass processing plants of all sizes and is widely used in construction, furniture, decoration, automobile and other industries. At the same time, the assembly line also has a user-friendly interface and operating system, making operation simple and convenient.
Read More
This CNC glass cutting machine integrates loading, cutting, and breaking in one unit, featuring high automation and precision. It adopts advanced CNC technology, allowing for quick loading, precise cutting, and automatic breaking of glass. With easy operation and high efficiency, it reduces manual labor and fatigue, greatly improving production efficiency and quality. Suitable for various glass processing scenarios.
Read More
