Laminated Glass Cutting Machine

Laminated Glass Cutting Machine

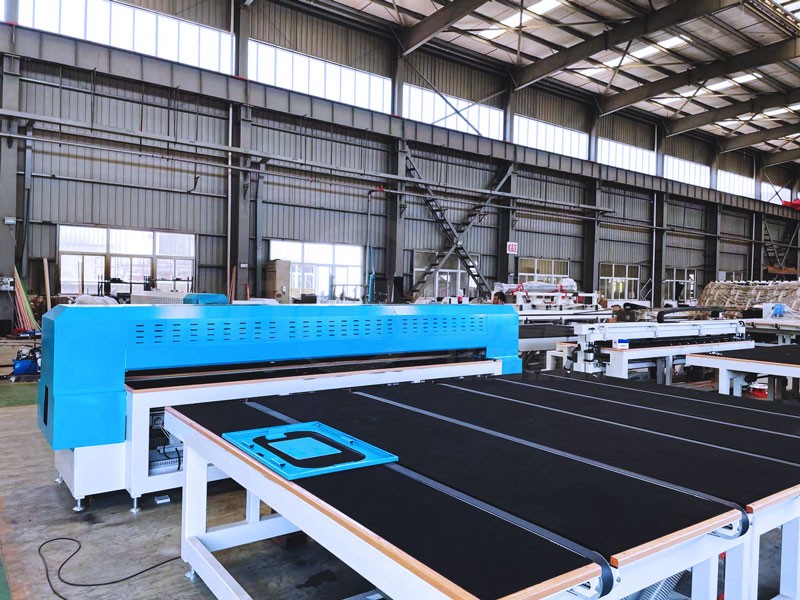

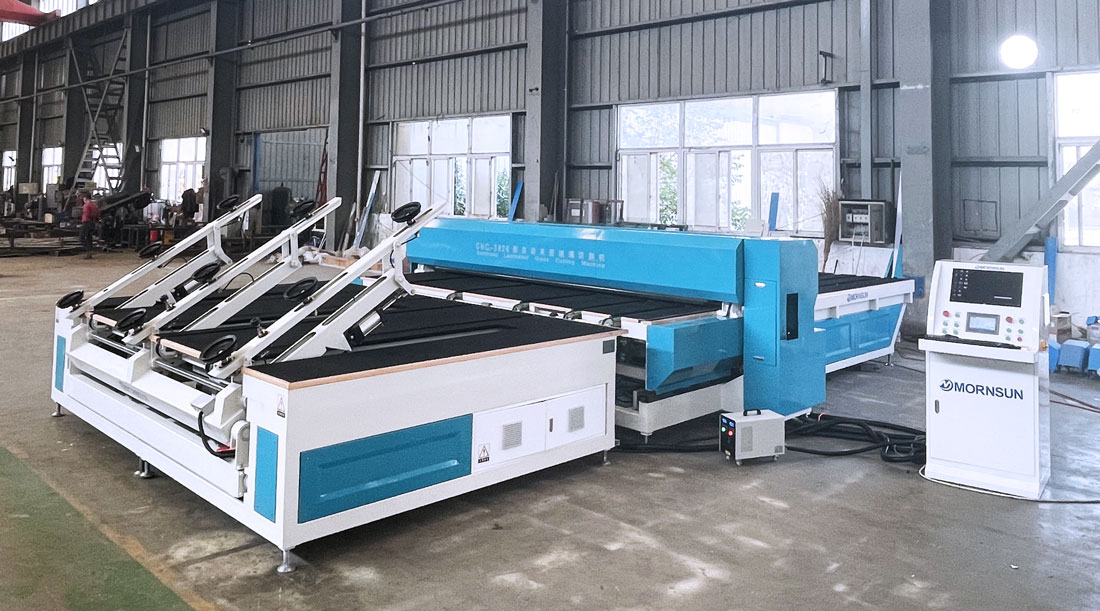

The Fully Automatic CNC Laminated Glass Cutting Machine is a high-precision glass cutting equipment. It combines the characteristics of CNC technology and laminated glass. It can achieve fast and precise cutting of EVA glass and automatically break the pieces during the cutting process, which greatly improves the efficiency of EVA glass. Ease and efficiency of processing laminated glass.

  • Max. Glass Size :

    3700mm
  • Min. Glass Size :

    200mm
  • Glass Thickness :

    3+3 ~ 10+10
  • Usage :

    Laminated Glass Cutting
  • Product Details

Machine Discription

The Fully Automatic CNC Laminated Glass Cutting Machine is a precision equipment specially used for processing laminated glass. Optimized scheduling, fully automatic splitting, production database and other equipment make laminated glass processing more intelligent. The laminated glass that can be processed has a wide range of sizes, covering all common laminated glasses on the market. High-precision cutting tools and positioning systems enable precise cutting and ensure the quality and flatness of the cutting edges.



Machine Parameter

Model  MSC-2620-LL MSC-3720-LL MSC-6020-LL
Max. Glass Width 2600mm 3700mm 6000mm
Min. Glass Width 200mm 200mm 200mm
Single Pieces of Glass Thickness 3 ~ 10mm 3 ~ 10mm 3 ~ 10mm
Laminated Layer Thickness 0.38 ~ 1.52mm

0.38 ~1.52mm

0.38 ~1.52mm
Cutting Speed 100m/min 100m/min 100m/min
Min. Air Pressure 0.8Mpa 0.8Mpa 0.8Mpa
Voltage 380V 50Hz 380V 50Hz 380V 50Hz



Machine Feature

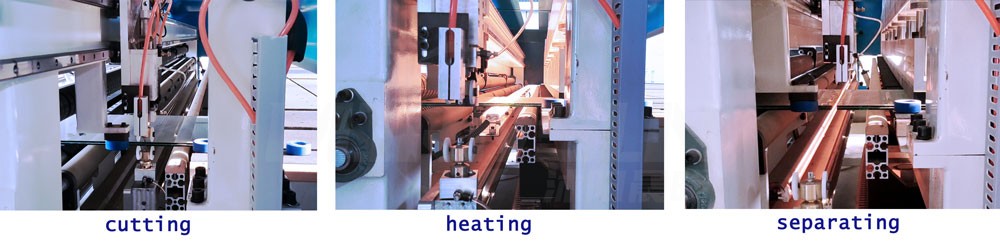

  • Automatic Breaking: after cutting, laminated glass will be separated into two parts automatically.
  • High- Speed Quartz Tube Heating: good quality and stable temperature.
  • Accurate Positioning:mechanical and photoelectric positioning combination, accuracy 0.25mm
  • Double Cutting Head: double knives are aligned and the cutting size is accurate to 0.3mm.
