Horizontal Glass Washing and Drying Machine is a kind of equipment specially used for cleaning flat glass. High-quality brushes and sponge rollers can easily remove dirt on the surface of glass and mirrors. The chain drive is more stable and durable.
Max. Glass Size :
500 ~ 2500Min. Glass Size :
40*40mmGlass Thickness :
3 ~ 19mmUsage :
flat glass washing and dryingMachine Description
Horizontal Glass Washing and Drying Machine is a kind of equipment specially used for cleaning flat glass. It can clean and dry flat glass and mirrors of various sizes and types efficiently and automatically. LOWE glass cleaning can be customized according to needs, as well as the cleaning and drying of small mirrors.
Machine Parameter

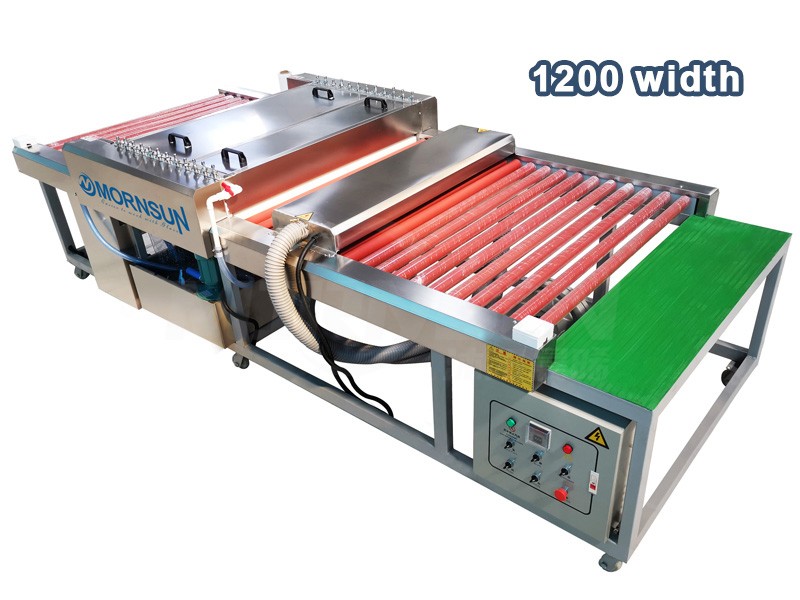

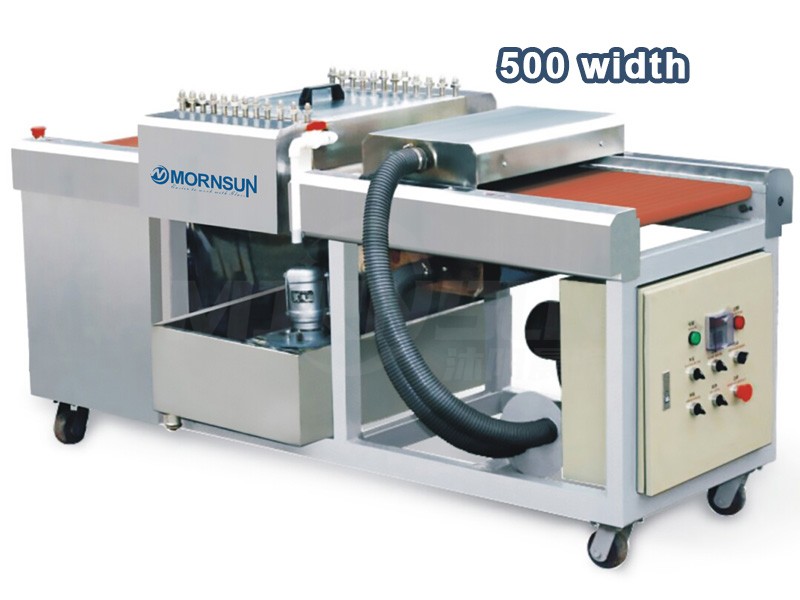

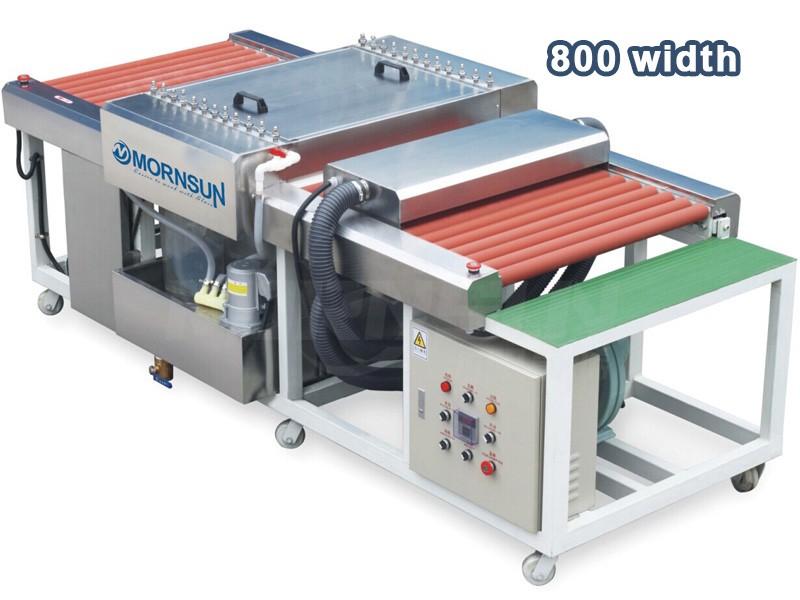

Model | MSQ-500 | MSQ-800 | MSQ-1200 | MSQ-1600 |
Max. Glass Size | 500mm | 800mm | 1200mm | 1600mm |
Min. Glass Size | 40*40mm | 40*40mm | 400*400mm | 400*400mm |
Glass Thickness | 2 ~ 19mm | 2 ~ 19mm |
2 ~ 19mm |
2 ~ 19mm |
Brush and Sponges | 4 + 3 | 4 + 3 | 4 + 3 | 4 + 3 |
Total Power | 5Kw | 7Kw | 9Kw | 11Kw |
Voltage | 380V 50Hz | 380V 50Hz |
380V 50Hz | 380V 50Hz |

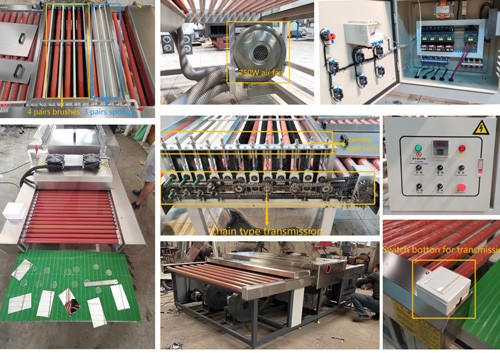

Machine Feature
