One Direction Aluminum Profile Bending Machine for Mirror Frame Making
One Direction Aluminum Profile Bending Machine is a basic bending machine for making mirror frame, one head bending can do all inward angle shape. PLC touch Screen make operation become easier.
Max. Glass Size :
/Min. Glass Size :
300*300mmGlass Thickness :
/Usage :
alumium profile bendingMachine Description

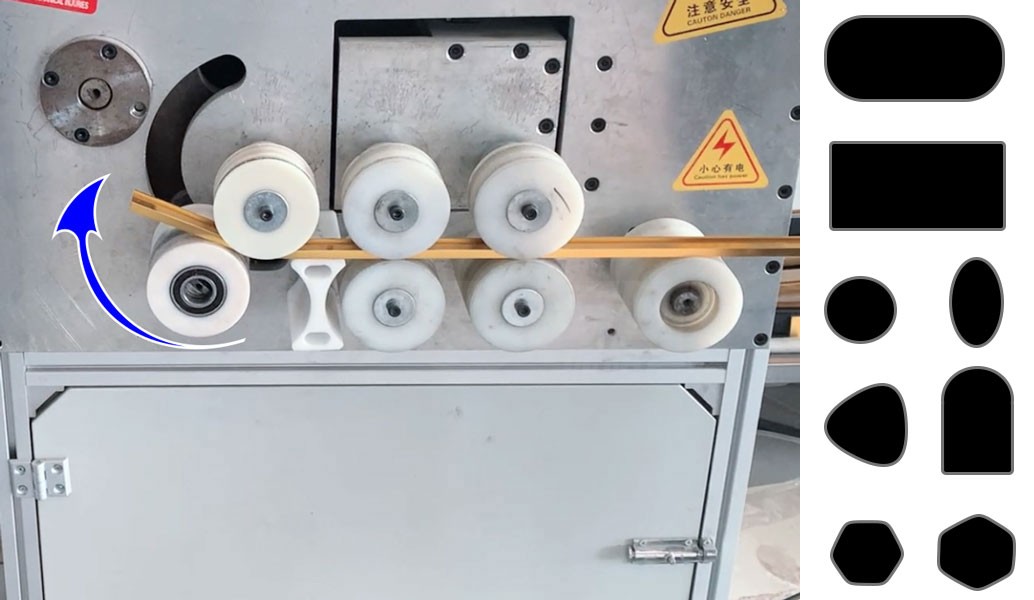

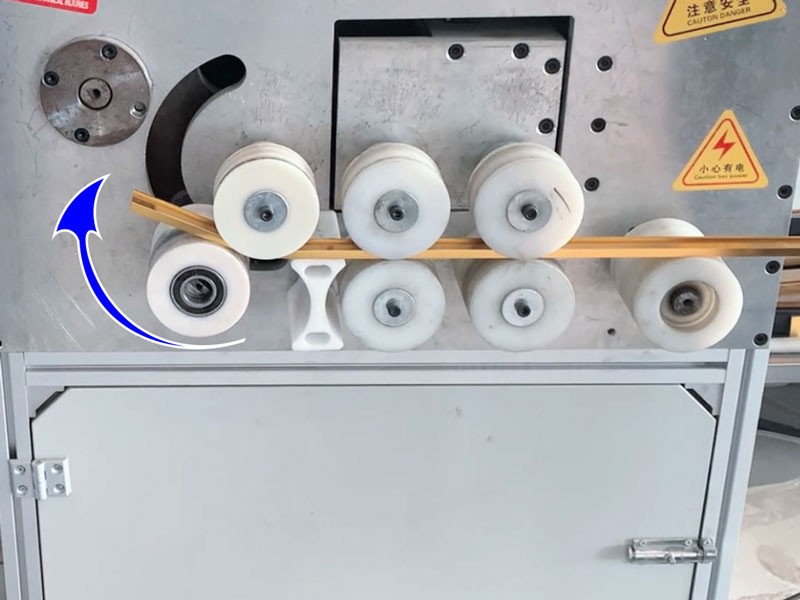

One Direction Aluminum Profile Bending Machine is a small equipment for mirror frame making. PLC touch screen can easily control bending machine. One bending head moving can make all simple shape, like circle, oval, rounded rectangle, capsule shape, drop shape etc.. Almost all inward angle shape is available. Bending rollers customized according to profiles have better fit and wrapping properties for profiles, which can avoid deformation and wrinkles during the bending process.
Machine Parameter
Model | MSB-1150 |
Min. Bending Angle | 50° |
Max. Profile Width |
15cm |
Max. Profile Thickness |
2mm |
Feeding Speed | 0.5m/s |
R Angle | Dia. 95mm |
Transmission | Servo Motor with Gear |
Bending Roller | PE |
Control Method | PLC Touch Screen |
Voltage | 220V 50Hz |
Machine Feature
Application
