Two Direction Aluminum Profile Bending Machine is CNC profile bending machine for making mirror frame, two head bending can do all shape. CNC software can input any designs you want.
Max. Glass Size :
/Min. Glass Size :
300*300mmGlass Thickness :
2~30MMUsage :
alumium profile bending for Mirror frame makingMachine Description

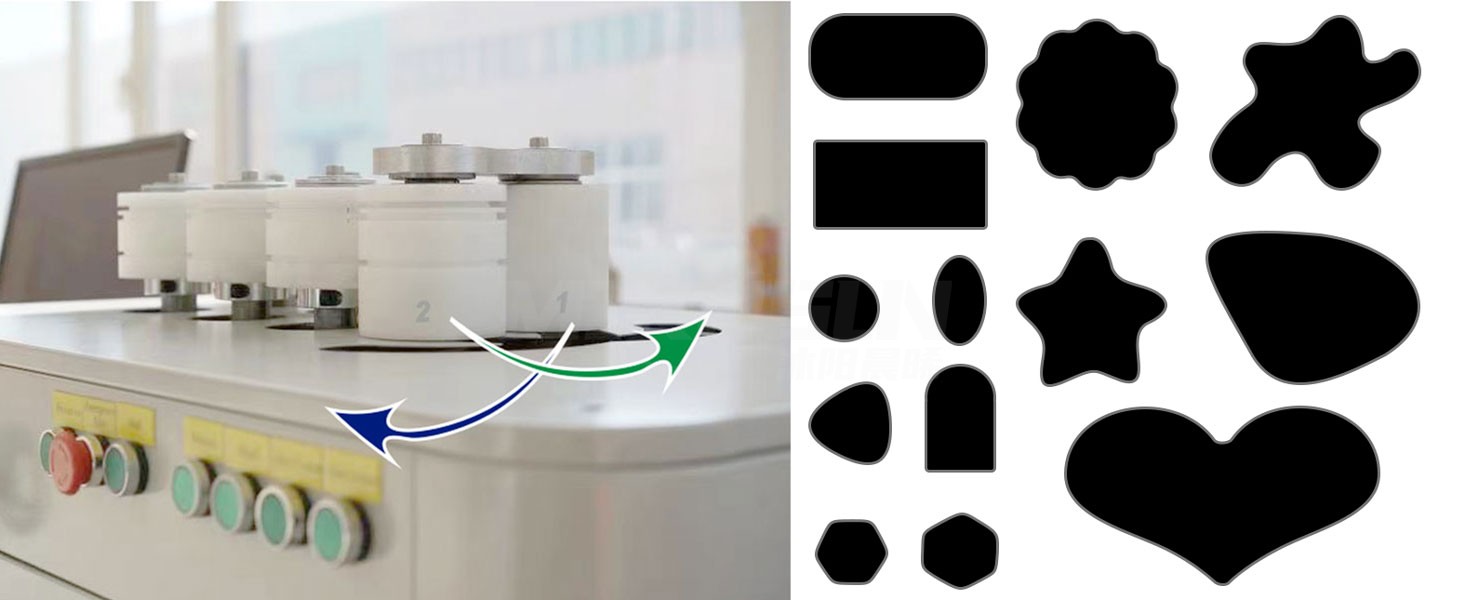

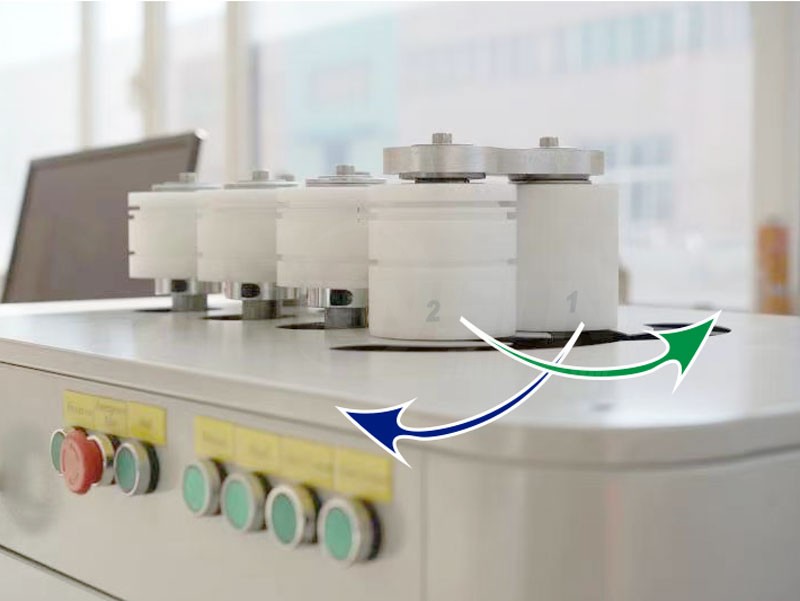

Two Direction Aluminum Profile Bending Machine is a small CNC equipment for mirror frame making. Software is easy to learn and use, two bending head moving can make all shape, like circle, oval, rounded rectangle, star shape, heart shape, irregular shape etc.. Bending rollers customized according to profiles have better fit and wrapping properties for profiles, which can avoid deformation and wrinkles during the bending process.
Machine Parameter
Model | MSB-2150 |
Min. Bending Angle | 50° |
Max. Profile Width |
15cm |
Max. Profile Thickness |
2mm |
Feeding Speed | 0.5m/s |
R Angle | Dia. 95mm |
Transmission | Servo Motor with Gear |
Computer | Equipped |
Bending Roller | PE |
Voltage | 220V 50Hz |
Machine Feature
Application
